Residential Concrete Foundations

The numbers behind a residential foundation are the difference between a slab that stays flat for forty years and one that cracks the drywall inside the first winter. We write the spec down at the quote stage, not on pour day.

• Footing depth — twelve inches below finished grade is the typical Piedmont frost minimum, deeper in the mountains, sometimes eight inches on the coastal plain. Local inspector has final say and we build to that number.
• Footing width — sixteen inches wide by eight inches deep is a common residential minimum, wider under load-bearing walls, columns, or garage door openings

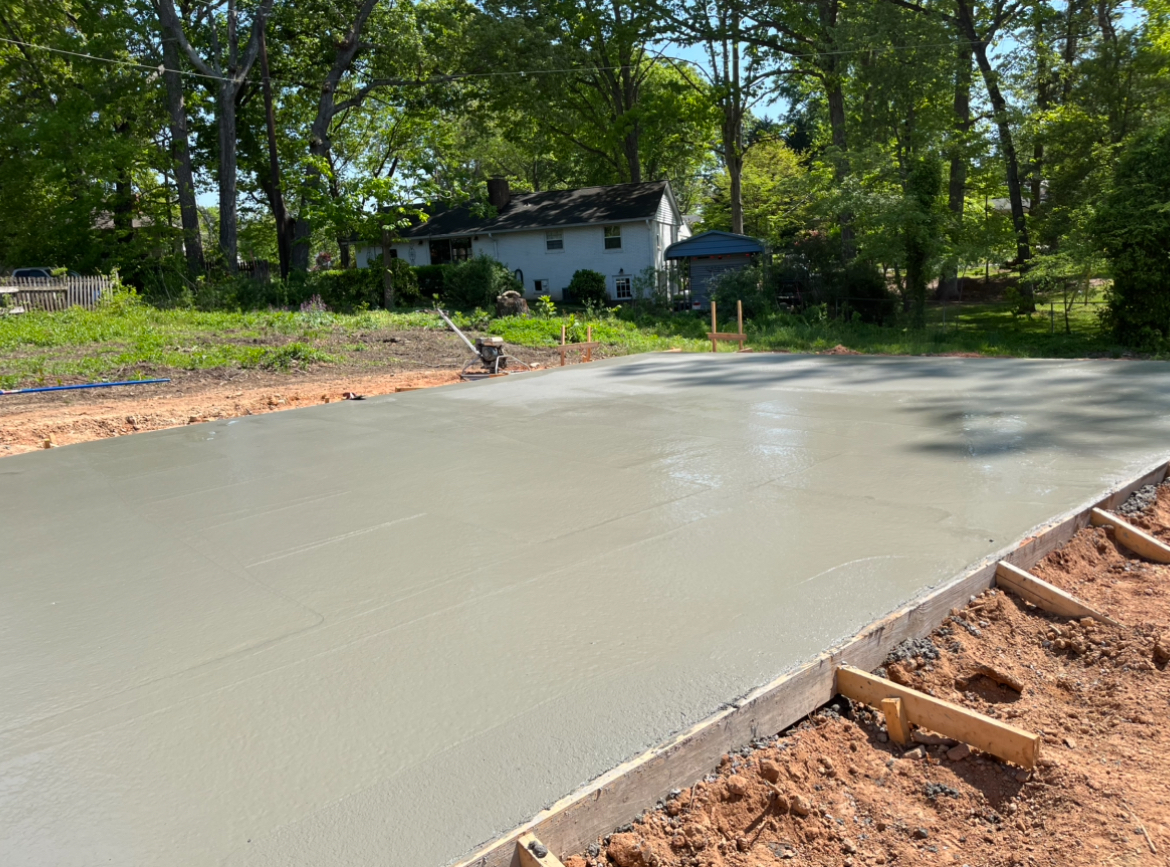

• Slab thickness — four inches for a light-storage building, four to five inches for a residential garage, six inches under vehicle bays with lifts, RVs, or heavy equipment

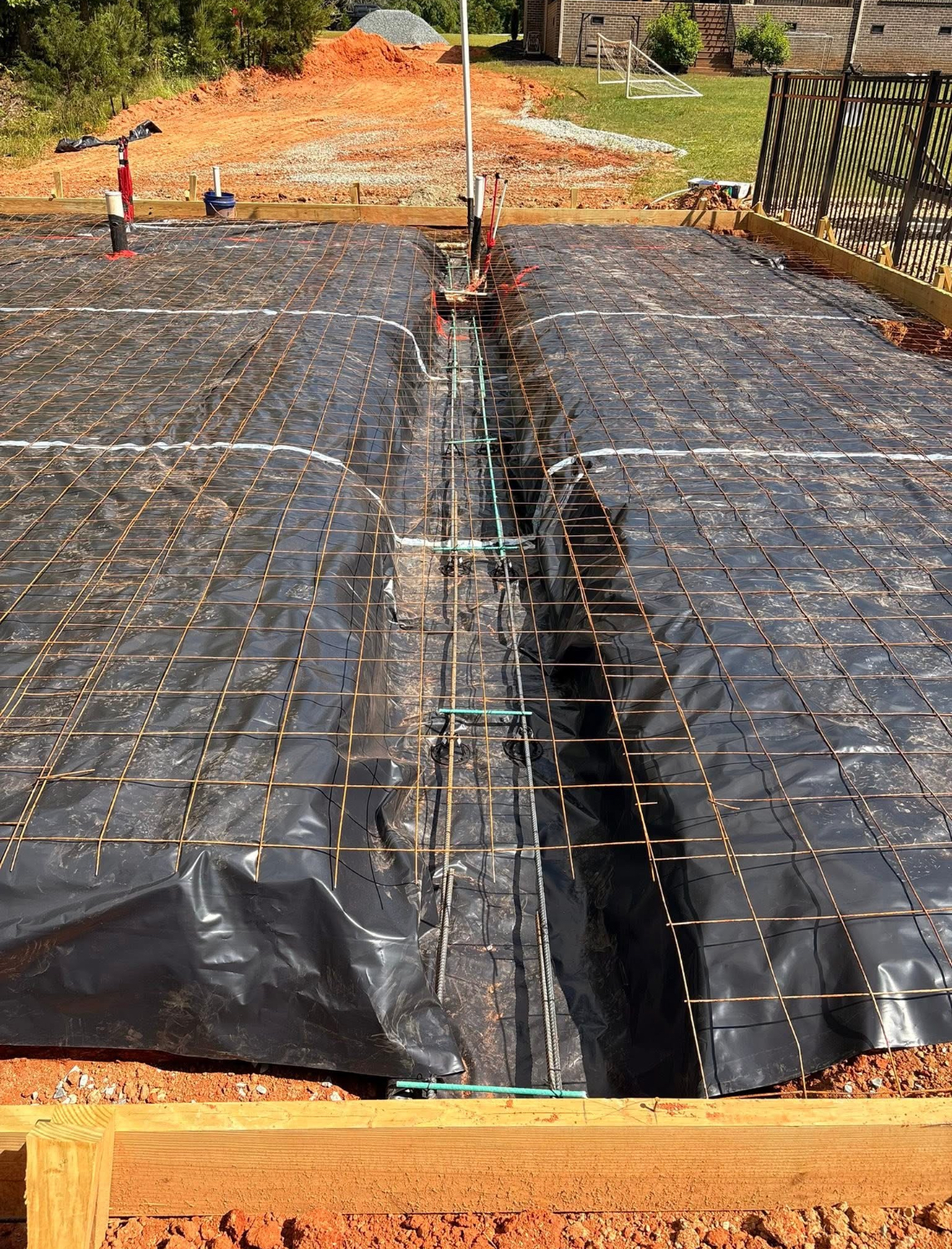

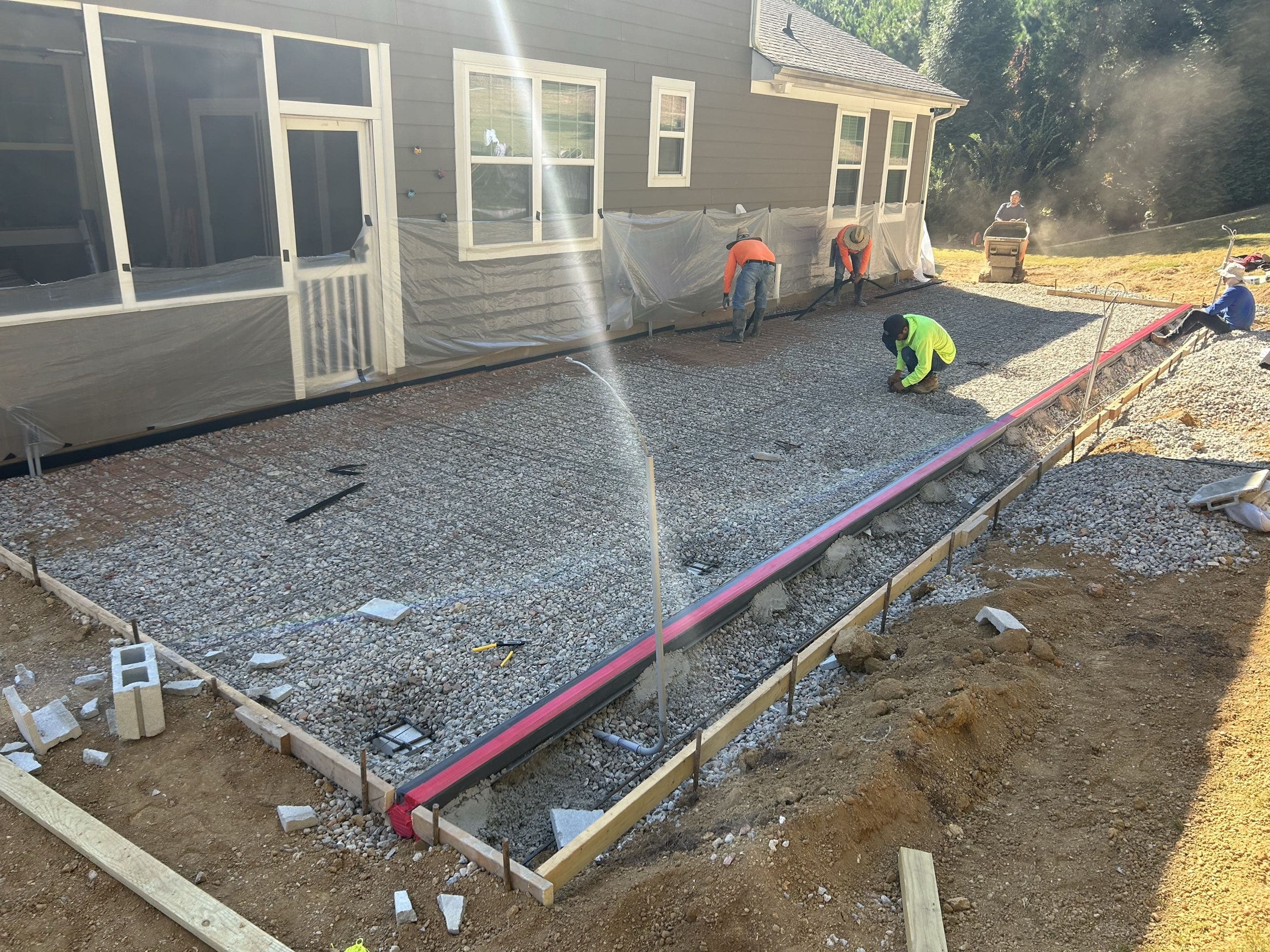

• Rebar — number-four bar on twelve to twenty-four-inch centers in both directions is the common grid, with continuous bar tied through footings and around penetrations
• Wire mesh is an alternative on lower-load slabs and is legitimate for small storage buildings where the code allows it

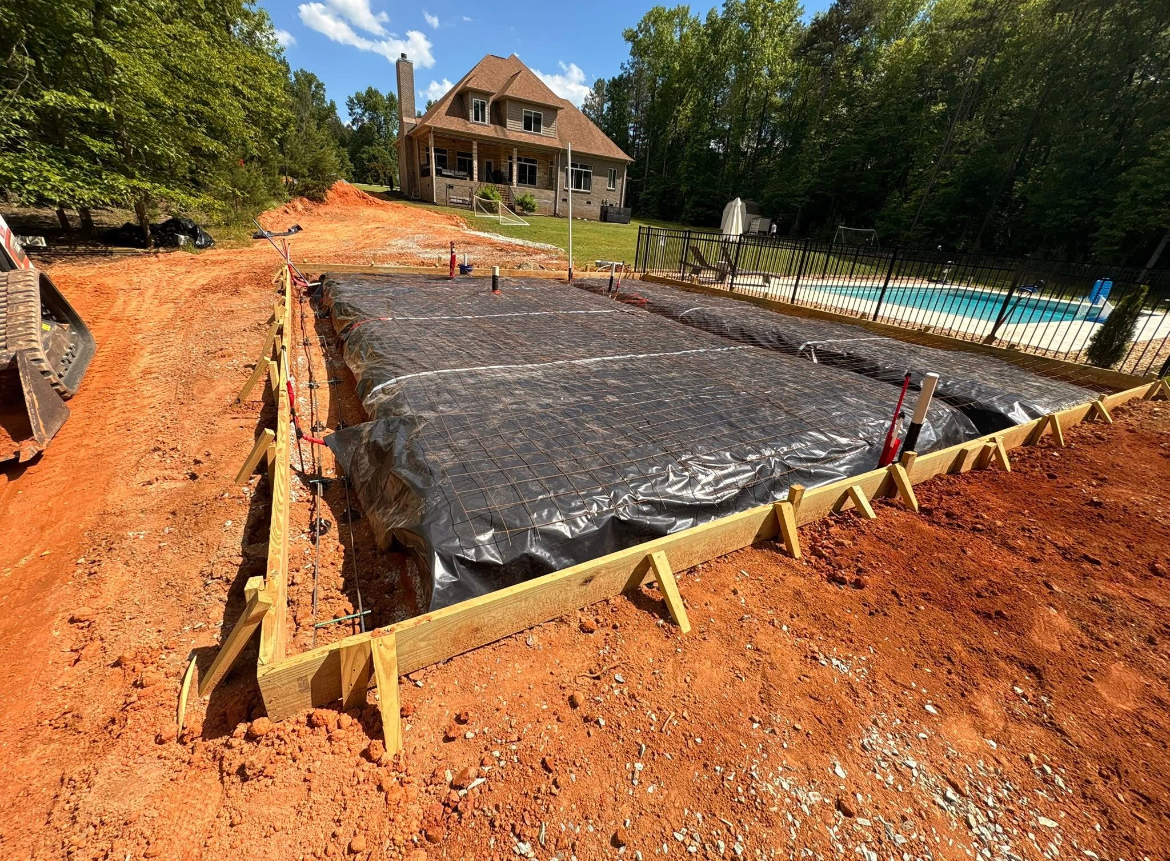

• Moisture barrier — six or ten mil polyethylene under the slab whenever the space will hold framing lumber, tools, or anything moisture-sensitive

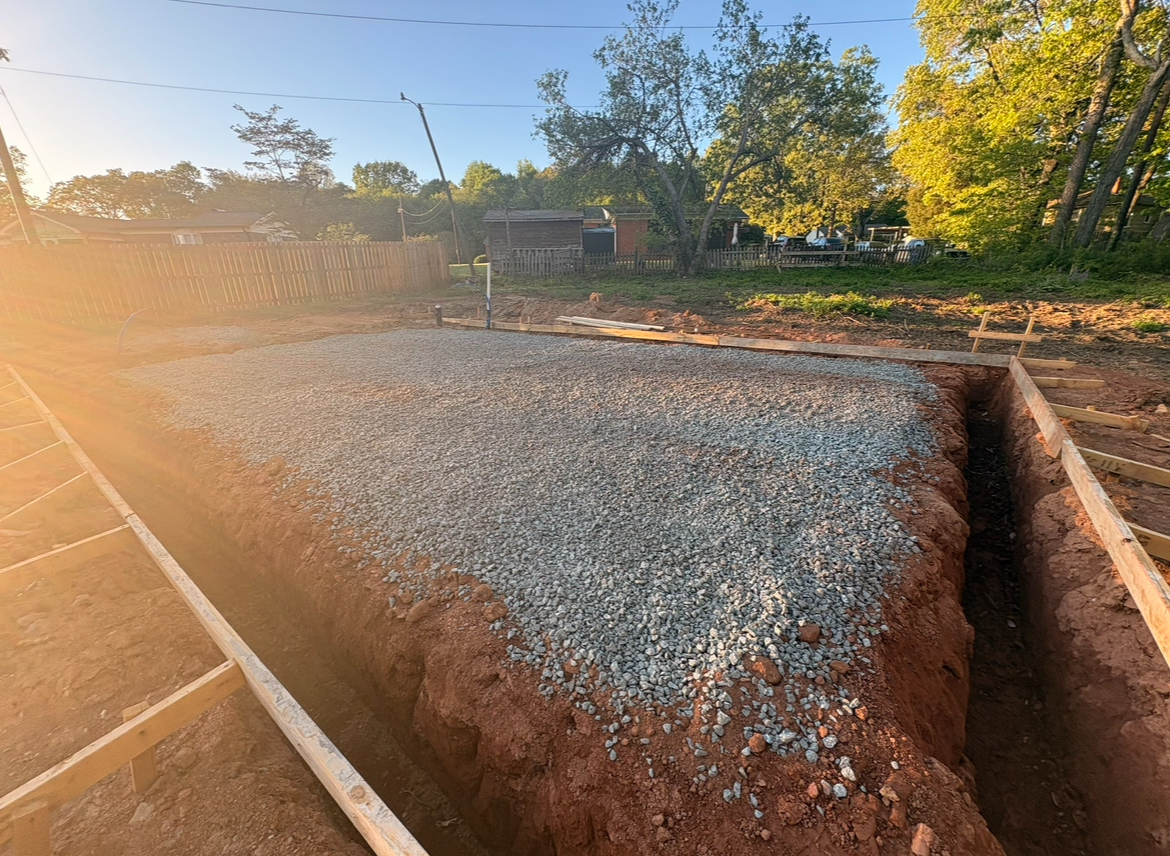

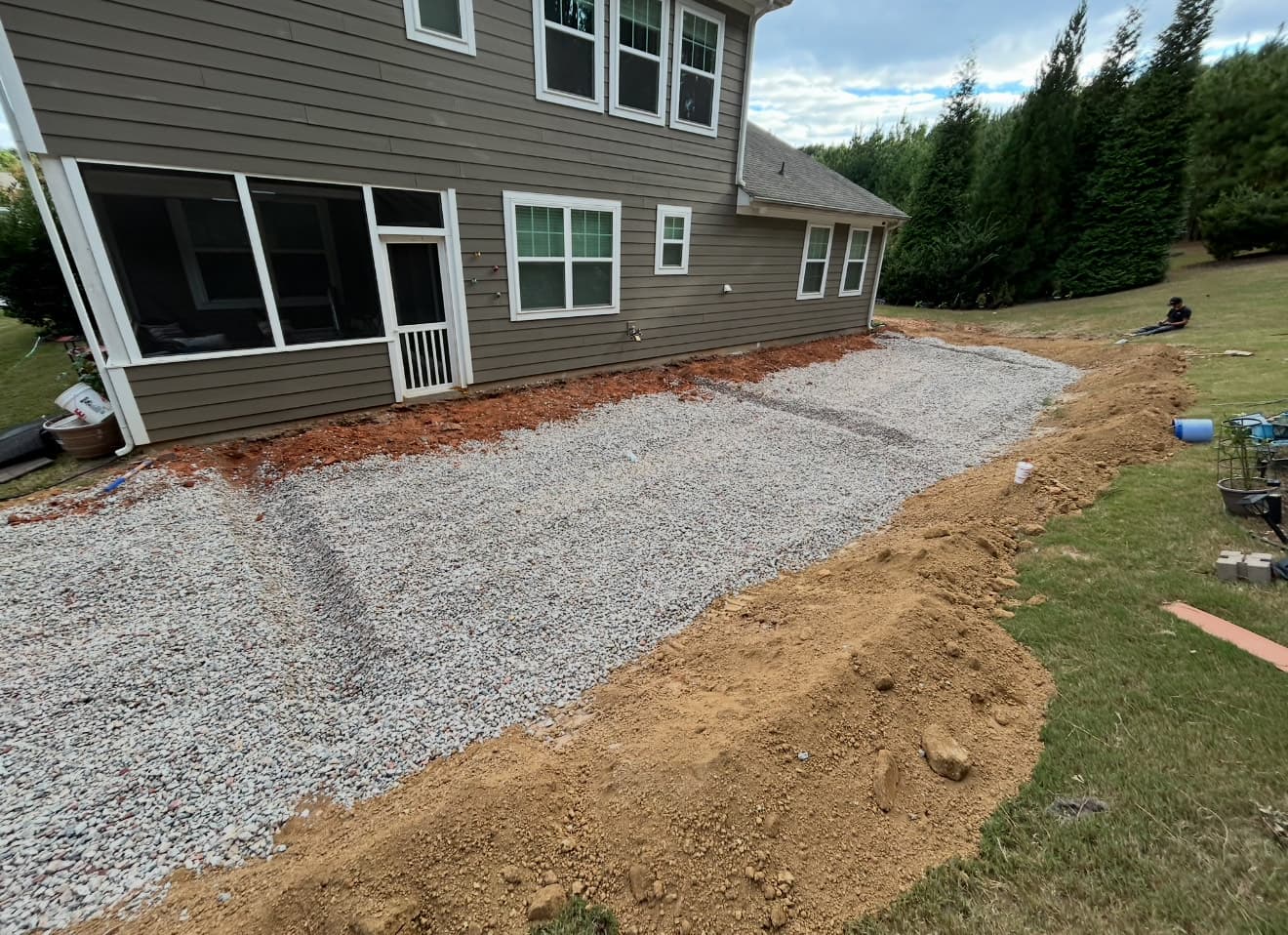

• Compacted gravel base — four inches of number 57 stone over compacted subgrade is the working default; more on soft clay, less on well-drained sand
• Anchor bolts, hold-downs, and column plates set into the wet pour to the exact framer or building manufacturer pattern

All of this shows up on the spec sheet you sign, in plain numbers.

Soil under a residential foundation in North Carolina behaves very differently depending on where you sit on the map, and the footing detail has to match.

• Piedmont red clay expands when it takes on water and shrinks when it dries out — the seasonal cycle can move an under-designed footing enough to crack drywall and stick doors. Wider footings, deeper bearing, and good drainage away from the perimeter matter more here than in most of the state.
• Coastal plain sandy soil drains fast and doesn't expand, but it can shift under point loads if the footing isn't wide enough to spread the weight. Frost depth is shallower but bearing capacity is often the design driver.
• Mountain soils, mixed rock and clay, sometimes need a stepped footing to keep bearing on undisturbed ground rather than fill
• Fill soil, cut-and-fill lots, and old topsoil zones need to be evaluated before the foundation goes down — pouring on uncompacted fill is how young additions start cracking within two years
• Drainage detail around the foundation — a properly graded perimeter, gutters that discharge away from the wall, and no ponding within four feet — extends foundation life more than almost any other single detail
• Trees within twenty feet of a Piedmont foundation are worth flagging at the site walk — root suction dries out clay and pulls footings down over time

We'll walk the soil with you, note what you actually have, and spec the footing to match rather than defaulting to a one-size number that ignores the site.
